Product summary

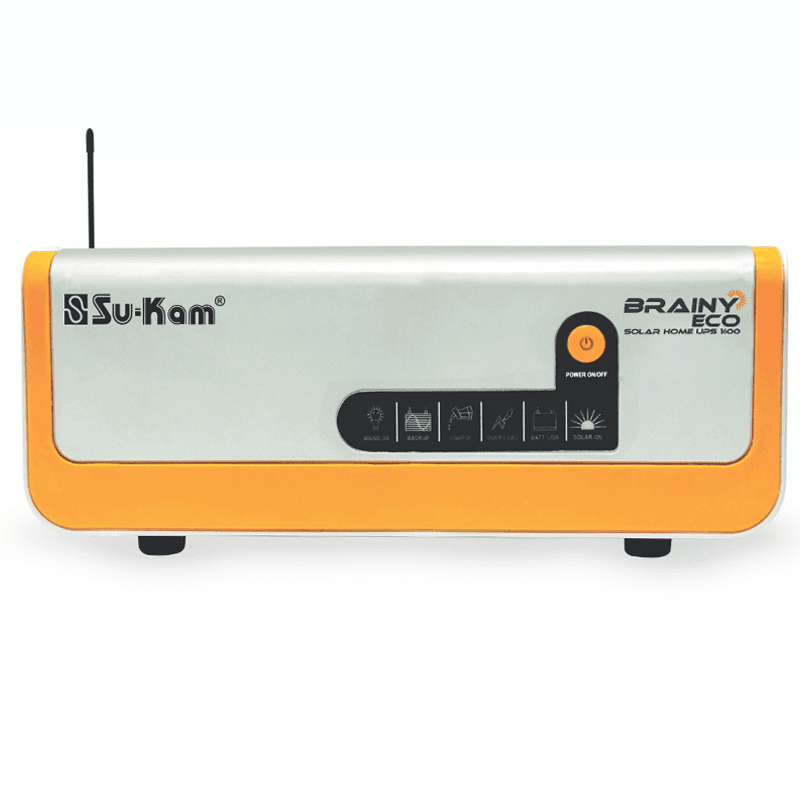

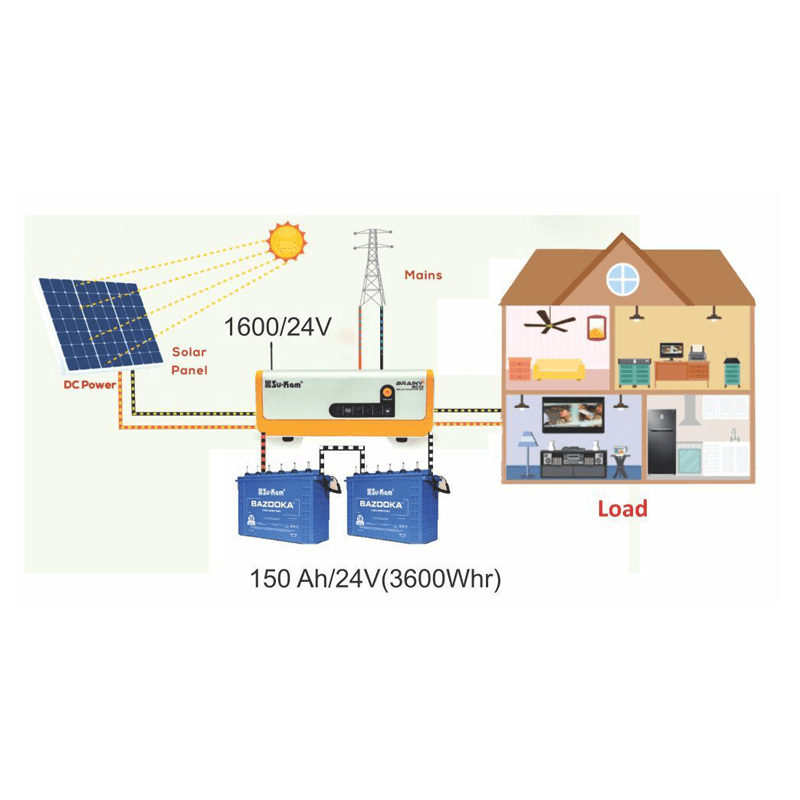

Sukam's brainy eco 1600 is an hybrid solar inverter with inbuilt 40 amps inbuilt solar charge controller. It is works with two batteries (24V) and comes with multiple advanced features. It is a hybrid solar inverter designed to provide power to home using sunlight.
- up to 1000 watt PV module connectivity
- inbuilt 40 amps charge controller.
- pv reverse polarity
Descriptions
Capacity |
1600 VA |
Technology |
Pure Sine Wave (latest) |
Power Load |
10 Led, 2 fans, 1 television. 1 air cooler, 1 mixer and refrigerator |
Backup time |
10-12 hours |
Technical
Operating voltage range |
100V – 290V |
Full battery charge time |
10 -12 hours |
Charge controller rating |
30 amps /24V |
Charge controller technology |
pwm |
Protection |
Overload, deep discharge, short-circuit, battery low cut off, PV reverse polarity |
Display
- Mains available – yes
- Running on battery - yes
- Battery Charging through electricity – yes
- Overload Indication – yes
- Low Battery Indication – yes
- Battery Charging through solar panels – yes
- Wrong PV panel connection wiring - yes
Additional features
- ATC wire
- MCB protection
- PV panel polarity display
- Wide battery selection type
Installation Manual : Download product Installation and operation manual
